In switch-mode power supply (SMPS) design, particularly with flyback topologies, a schematic only represents the logical connectivity of idealized components. It completely abstracts away the physical layout realities and parasitic parameters of the actual PCB. This gap is the primary reason why first-pass designs often end up with blown MOSFETs or fail electromagnetic compatibility (EMC) testing.
Here is a technical breakdown of what the schematic hides, and how these challenges are automated and resolved within OmeraCode’s 18-step deterministic pipeline:

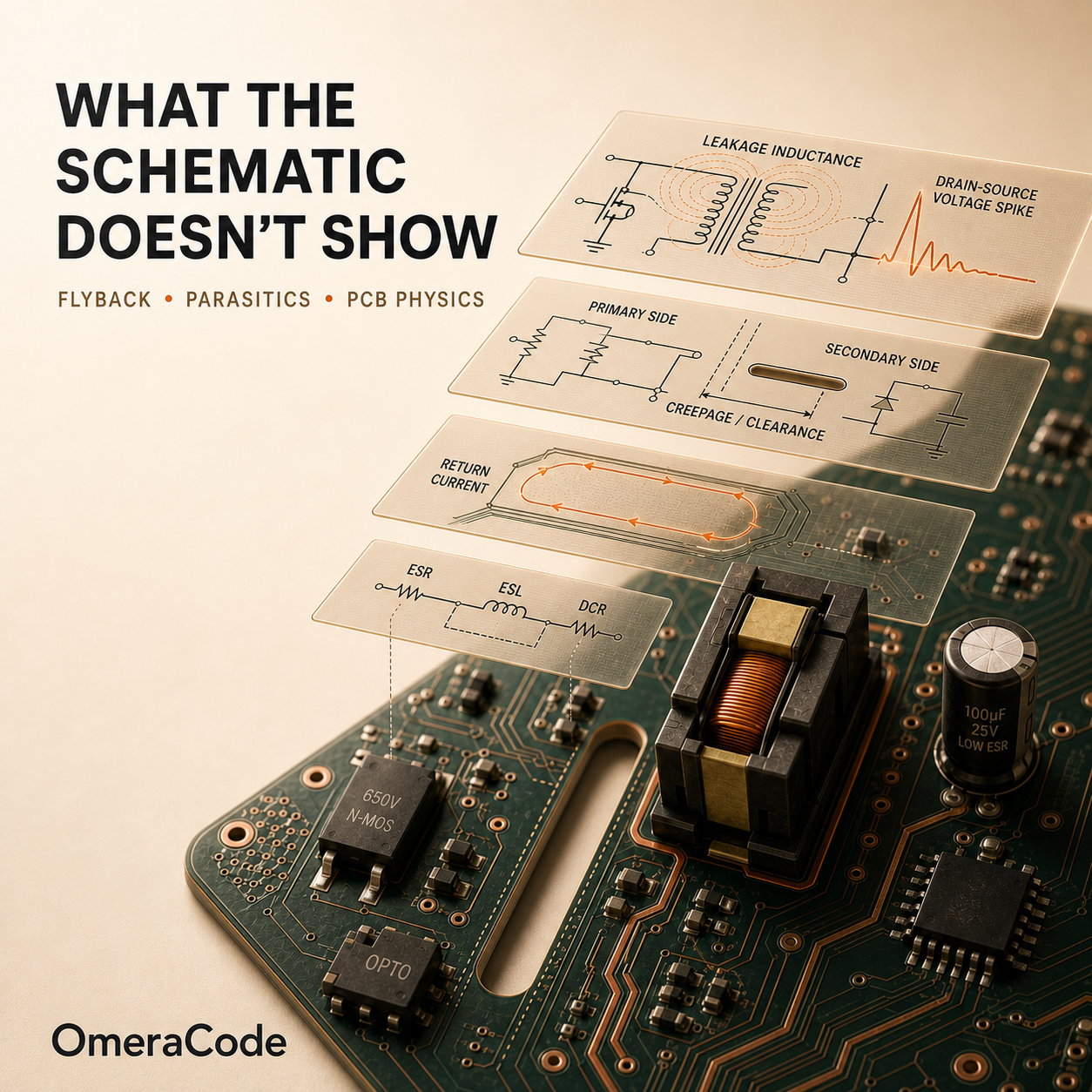

1. Transformer Leakage Inductance and Transient Voltage Spikes
Unlike the ideal transformers represented in schematics, real-world flyback transformers exhibit leakage inductance. A flyback converter stores energy in the core during the switch conduction phase and releases it when the switch opens.
At the exact moment the MOSFET turns off, the current flowing through this leakage inductance drops to zero almost instantaneously. This high rate of change in current (di/dt) generates a massive voltage spike across the drain-to-source (VDS) junction of the MOSFET, risking avalanche breakdown and component failure.
- The OmeraCode Solution: OmeraCode handles this by integrating a Deterministic Physics Engine with an automated ngspice simulation workflow. The system calculates the optimal RCD snubber/clamp parameters based on the transformer’s leakage inductance and switching frequency. It then runs a parameter sweep to ensure the transient VDS peak remains well within safe margins before layout generation begins.
2. Split Ground Domains and Isolation Barriers
Isolated flybacks require absolute galvanic isolation between the primary and secondary grounds (GND) for safety. On a schematic, this division is merely indicated by two different ground symbols.
In physical layouts, however, this translates to strict ground plane partitioning, creepage (distance along the board surface), and clearance (distance through the air) requirements, especially beneath bridging components like optocouplers and Y-capacitors.
- The OmeraCode Solution: In OmeraCode’s 18-Step Pipeline, the system isolates the primary and secondary ground nets right at Step 2 (Decompose) during netlist generation. During component placement (Step 10: Place) and routing (Step 12: Route), the system enforces clear safety boundaries. It then validates this spacing in Step 14 (DFM Check) via its DFM Rules Engine and runs an LVS (Layout Versus Schematic) checker using topological graph matching at Step 15 (Full Validate) to guarantee schematic-to-layout consistency before reaching Step 16 (Manufacturing Gate).
3. Current Return Paths and EMI Performance
A schematic shows connections as straight lines, ignoring how the return current flows through the ground plane. At high frequencies, return currents naturally seek the path of least impedance (which is the path of least inductance directly under the signal/power trace), minimizing the loop area.
If the reference plane is split or poorly routed, the return current is forced to take a longer detour. This expands the loop area, creating a loop antenna that radiates electromagnetic interference (EMI) and fails compliance tests.
- The OmeraCode Solution: In Step 12 (Route) and Step 13 (Zone Fill), OmeraCode utilizes a negotiation-based routing solver combined with automated copper pours (Zone Fills) to minimize loop areas of high di/dt paths, such as the primary power loop and the secondary rectifier loop. The built-in trace optimization engine calculates the shortest possible return path, ensuring a continuous ground reference plane remains intact underneath high-frequency switching lines and sensitive control signals.
4. Component Parasitics and Real-World Modeling
Simulating with idealized components is a common trap. Ignoring non-ideal characteristics like the Equivalent Series Resistance (ESR) and Equivalent Series Inductance (ESL) of output filter capacitors leads to incorrect output ripple estimations and inaccurate loop compensation phase margin calculations.
- The OmeraCode Solution: OmeraCode bypasses this via a Datasheet RAG (Retrieval-Augmented Generation) engine mapped to a database of 616,000+ real-world components. Instead of relying on idealized library parts, the system extracts real physical parameters—such as capacitor ESR/ESL, inductor DCR, and leakage specs—directly from datasheets to build high-fidelity simulation models. This guarantees that control loop stability matches the physical board once assembled.
Conclusion
Building a reliable flyback converter requires a unified approach that bridges theoretical math with physical layout constraints and parasitics. By standardizing component property retrieval, transient simulation, loop-area optimized routing, and closed-loop LVS/DFM checks within a structured 18-step pipeline, OmeraCode helps hardware engineers prevent common layout pitfalls, ensuring first-pass design success.
